Product Details

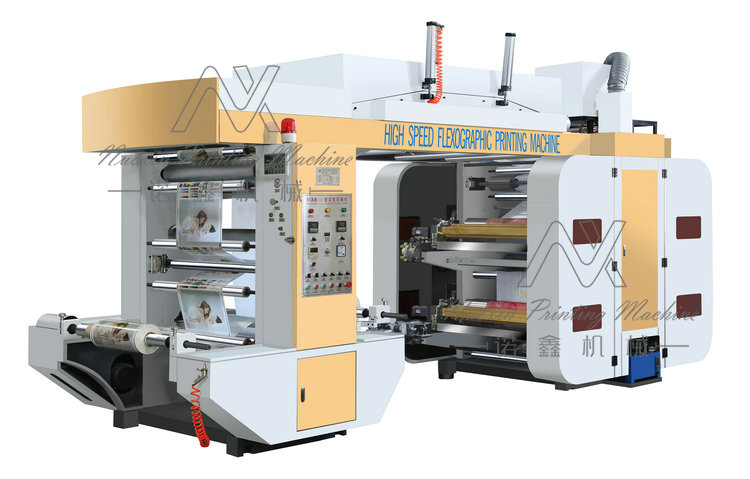

NXT Series High Speed- 4 colour Flexographic Printing Machine
Feature：
1. The frame adopts 75MM thick wall, full casting flat plate, increase the scale and so on to enhance the stability.
2. The printing roller is made of thickened steel bars, with 10 silk thick hard chrome protective layer.
3. The aluminum alloy guide wheel, with hard oxidation, dynamic balance, static balance treatment.
4. High-precision wider synchronous belt drive, low noise while high speed running, low vibration, makes machine more stable.
5.The plate roller gear, adopts special helical gear transmission. Each tooth 5MM, more stable printing effect, and more accurate printing length .
Main points:
-Adopts the synchronous belt drive instead of Gear drive;
-Machine running more quite, higher printing precision, good quality;
-Machine more stability;
-High Mechanical speed: 135m/min
-High printing speed: 30-120m/min ( match chamber doctor blade)
-Single unwind & Single rewind
Technical Parameter : 主要參數
|
型號 |
Model |
NXT-4600 |
NXT-4800 |
NXT-41000 |
NXT-41200 |
|
最大印料寬度 |
Max. Material width |
630mm |
830mm |
1030mm |
1230mm |
|
最大印刷寬度 |
Max. Printing width |
560mm |
760mm |
960mm |
1160mm |
|
印刷長度 |
Printing length |
7.5''--40''（190-1060mm） |
|||
|
起落版方式 |
Printing cylinder way |
Hydraulic control up and down液壓 |
|||
|
驅動方式 |
Drive type |
Synchronous belt drive 同步帶傳動 |
|||
|
承印材料 |
Printing material |
Film, HDPE. LDPE, LLDPE etc |
|||
|
機械速度 |
Mechanical speed |
110m/min |
|||
|
印刷速度 |
Printing speed |
10-90m/min |
|||
|
網紋輥 |
Anilox roller |
Metal:100-300LPI / Ceramic: 200-800LPI 金屬/陶瓷網紋輥 |
|||
|
刮刀 |
Doctor blade |
Open type doctor blade 開放式刮刀 |
|||
|
套準精度 |
Register precision |
縱向Longitudinal：±0.2mm、橫向crosswise：±0.2m |
|||
|
收放卷直徑 |
Unwind/rewind dia. |
Φ1000mm,Φ1200mm |
|||
|
烘干方式 |
Dry system |
Electric heating電加熱 |
|||
|
總功率 |
Machine power |
25kw |
25kw |
30kw |
30kw |
|
機械尺寸 |
Machine size （L x W x H） |
5.0m×2.0m×3.0m |
5.0m×2.2m×3.0m |
5.0m×2.4m×3.0m |
5.0m×2.6m×3.0m |
Machine Also can made as client requirement. 我們也可以根據客戶的要求定做機器。
Optional parts: need extra cost
1) various size of Printing cylinder 多種規格版輥
2) Double unwinder/ rewinder 雙收雙放
3) Automatic pneumatic loading 氣動上料
4) Automatic pneumatic unloading 氣動卸料
5) Crane 吊車
6) PLC: taiwan brand
7) Enclosed chamber dr blade 封閉刮刀
8) video camera monitor 靜止畫面
9) Motor register for all directions 電動套色
welcome to contact Ms Linda: +86 15258016098
