Product Details

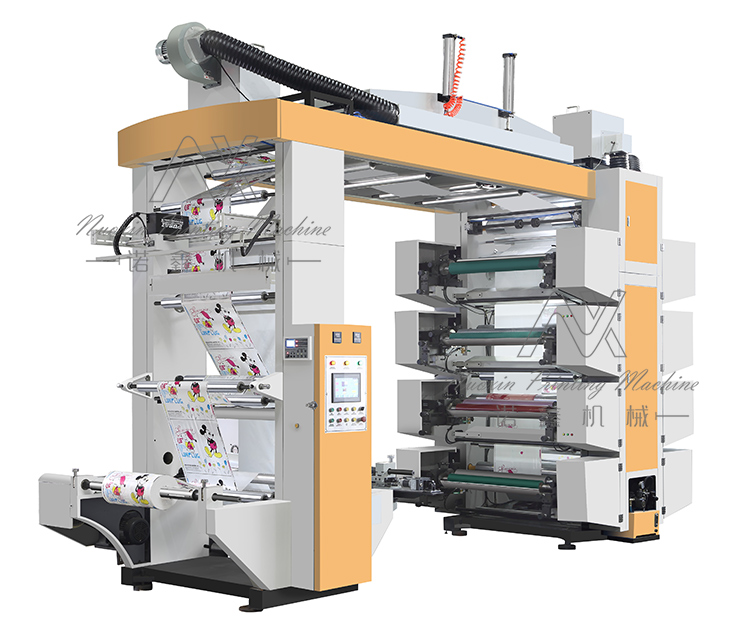

NXT Series High Speed- 8 colour Flexographic Printing Machine
Main points:
-Adopts the synchronous belt drive instead of Gear drive;
-Machine running more quite, higher printing precision, good quality;
-Machine more stability;
-High Mechanical speed: 135m/min
-High printing speed: 30-120m/min ( match chamber doctor blade)
-Single unwind & Single rewind
Technical Parameter : 主要參數
|
型號 |
Model |
NXT-8600 |
NXT-8800 |
NXT-81000 |
NXT-81200 |
|
最大印料寬度 |
Max. Material width |
630mm |
830mm |
1030mm |
1230mm |
|
最大印刷寬度 |
Max. Printing width |
560mm |
760mm |
960mm |
1160mm |
|
印刷長度 |
Printing length |
7.5''--40''（190-1060mm） |
|||
|
起落版方式 |
Printing cylinder way |
Hydraulic control up and down液壓 |
|||
|
驅動方式 |
Drive type |
Synchronous belt drive 同步帶傳動 |
|||
|
承印材料 |
Printing material |
Film, HDPE. LDPE, LLDPE etc |
|||
|
機械速度 |
Mechanical speed |
110m/min |
|||
|
印刷速度 |
Printing speed |
10-90m/min |
|||
|
網紋輥 |
Anilox roller |
Metal:100-300LPI / Ceramic: 200-800LPI 金屬/陶瓷網紋輥 |
|||
|
刮刀 |
Doctor blade |
Open type doctor blade 開放式刮刀 |
|||
|
套準精度 |
Register precision |
縱向Longitudinal：±0.2mm、橫向crosswise：±0.2m |
|||
|
收放卷直徑 |
Unwind/rewind dia. |
Φ1000mm |
|||
|
烘干方式 |
Dry system |
Electric heating電加熱 |
|||
|
總功率 |
Machine power |
40kw |
40kw |
45kw |
45kw |
|
機械尺寸 |
Machine size （L x W x H） |
5.4m×2.0m×4.0m |
5.4m×2.2m×4.0m |
5.4m×2.4m×4.0m |
5.4m×2.6m×4.0m |
Machine Also can made as client requirement. 我們也可以根據客戶的要求定做機器。
Optional: 選配
1) various size of Printing cylinder 多種規格版輥
2) Double unwinder/ rewinder 雙收雙放
3) Automatic pneumatic loading 氣動上料
4) Automatic pneumatic unloading 氣動卸料
5) Crane 吊車
6) PLC: taiwan brand
7) Enclosed chamber dr blade 封閉刮刀
8) video camera monitor 靜止畫面
9) Motor register for all directions 電動套色
welcome to contact Ms Linda: +86 15258016098
